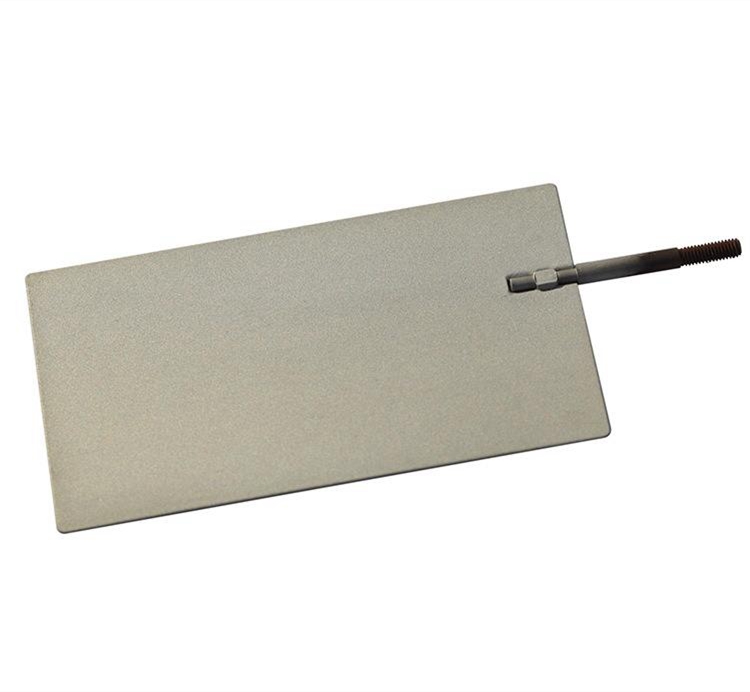

Descriptions of Titanium MMO Sheet
Titanium MMO (Mixed Metal Oxide) Sheet is a titanium-based electrode material coated with a layer of mixed metal oxides such as ruthenium, iridium, platinum, or tantalum. It offers excellent electrochemical performance, high durability, and superior corrosion resistance, making it ideal for use in harsh chemical environments. The MMO coating provides excellent catalytic properties for oxygen and chlorine evolution reactions, ensuring long service life and stable performance in various electrolytic processes.
Specifications of Titanium MMO Sheet
Titanium Substrate Composition
| Grade |
N (%) |
C (%) |
H (%) |
Fe (%) |
O (%) |
Ti |
| Gr1 |
0.03 |
0.08 |
0.015 |
0.20 |
0.18 |
Balance |
| Gr2 |
0.03 |
0.05 |
0.015 |
0.30 |
0.25 |
Balance |
Regular Coating Types
Platinum: 0.5 μm / 1 μm
Mixed Iridium and Platinum: 0.5 μm / 1 μm
Mixed Ruthenium and Iridium: 6–8 μm
Mixed Iridium and Tantalum: 6–8 μm
Characteristics
Coating: Mixed Ruthenium and Iridium
Chlorine Evolution Potential: < 1.13 V
Polarizability: ≤ 40 mV
Accelerated Life: ≥ 3000 min (under 1000 A/m²)
Anode Weight Loss: ≤ 10 mg
Suitable Working Environment: Solution containing Cl⁻, pH ≤ 7
Coating Contents & Service Life
| Coating Load (g/m²) |
Service Life (hours) |
| 8 |
> 6,000 |
| 10 |
> 8,000 |
| 12 |
> 10,000 |
| 15 |
> 12,000 |
| 20 |
> 15,000 |
Working Parameters
Current Density: < 600 A/m²
Operating Temperature: 40–60 °C
Chlorine Concentration: 30–50 g/L
Polarity Reversal: Suitable
Reversal Frequency: 2–4 hours
Regular Sizes
| Dimensions (mm) |
Quantity |
| 63.5 × 150 |
13 pcs/set |
| 64 × 110 |
7 pcs/set |
| 80 × 120 |
1 pcs/set |
| 30 × 183 |
7 pcs/set |
| 80 × 185 |
7 pcs/set |
Applications of Titanium MMO Sheet
Titanium MMO Sheet is widely used in electrochemical and corrosion protection systems, including:
Cathodic protection (CP) systems for pipelines, storage tanks, and marine structures
Electrochlorination and water treatment systems
Electrowinning and electroplating processes
Electrochemical oxidation and reduction reactions
Desalination plants and wastewater treatment systems
Corrosion monitoring and control equipment
Titanium MMO sheets combine the high strength and corrosion resistance of titanium with the excellent catalytic activity of mixed metal oxides, ensuring high performance, long life, and cost efficiency in demanding industrial environments.
