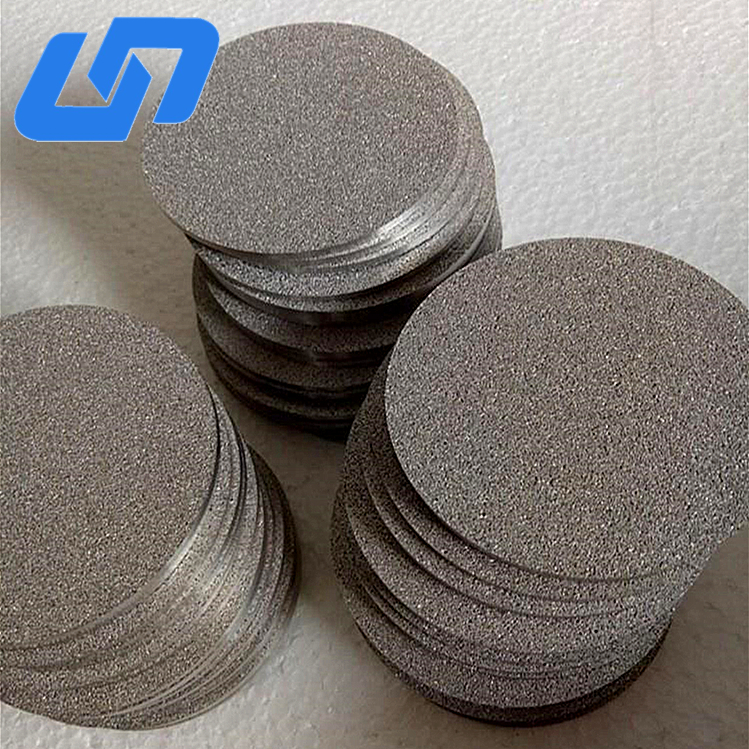

Sintered Porous Filter Nickel Customize Size For The Metallurgical Industry

Name: Sintered Porous Filter Nickel Customize Size For The Metallurgical Industry
Brand: CSTY
Price: 80.00 USD

China Sintered Porous Filter Nickel Customize Size For The Metallurgical Industry wholesale

Brand Name : CSTY

Model Number : Ni

Certification : GB/T19001-2016/ISO9001:2015

Place of Origin : CHINA

MOQ : 10kgs

Price : $80.00 - $110.00/ Piece

Payment Terms : L/C, T/T, Western Union, MoneyGram,Paypal

Supply Ability : 5000 Kilogram/Kilograms per Month

Delivery Time : 15~20 work days

Packaging Details : film and wooden case,carton Packaging can be according to customer requirements.

Sample Service : Provide sample for testing

Diameter : 50mm

Working Temperature : 0-200℃

Porosity : 30-60%

Tensile Strength : ≥0.6MPa

Dimension : Customized

Feature : Porous

Other Service : Platium coating titanium felt

Abrasion Resistance : High

Filtration Area : 0.3-1.0m2

Surface Finish : Smooth

Pressure Rating : Up to 10,000 psi

Product : Sintered Titanium Felt

Sample : Available

Filter Rating : 0.2um-100um

Contact Now

Introduction

Compared with traditional filtration materials such as paper, cotton, PP, PE, PES, and PTFE, metal powder sintered porous materials offer significantly improved performance.

They feature excellent permeability, precise pore size control, stable structure, high filtration accuracy, wear resistance, and strong mechanical properties.
Additionally, these filters provide good heat conduction, heat resistance, and dissipation, and can be cleaned and reused multiple times without loss of performance, making them both durable and economical.

Specifications

Product Name	Sintered Filter
Material	Pure Titanium / SS316L / Bronze
Size	OD 20–80 mm × WT 2.5–3.0 mm × L 10–1200 mm
Filter Accuracy	0.5–80 µm
Connection	Customized according to customer requirements
Applications	Sparging, Separation and Filtration, Carbonation, Liquid Filtration, etc.

Technical Parameters

Filter Accuracy (µm)	Porosity (%)	Permeability (m³/m²·h·kPa)	Compression Strength (MPa)	Temperature Tolerance (°C)	Max Working Pressure (MPa)
0.5–50	20–50	3–800	2–3	250	0.6

Applications

The sintered filter is widely used in electronics, water treatment, food and beverage, biotechnology, chemical, petrochemical, metallurgy, and gas purification industries.
It is recognized as a next-generation filtration material with broad development potential.

Typical applications include:

Sparging
Separation and Filtration
Carbonation
Liquid Filtration
Catalyst Recovery
Steam Filtration
Slurry Oil Filtration
Flame Arrestors
Sound Silencing
Fluid Distribution and Control
Semiconductor Industry
Fuel Cell Stack
Coating Electrodes
Damping and Shock Absorption
Heat Exchange
Bio-Implants

Key Properties

Uniform pore size and stable structure ensure high separation efficiency.
High porosity, low filtration resistance, and excellent permeability.
Strong chemical stability and resistance to acids, alkalis, and oxidation.
Stable morphology with no particle shedding; compliant with food hygiene and pharmaceutical GMP standards.
Excellent mechanical strength, low differential pressure, and high flow rate.
Anti-microbial surface — does not interact with microorganisms.
Easy to clean and regenerate online; long service life.
Excellent biocompatibility for biological, food, pharmaceutical, and medical use.
Effective electromagnetic shielding performance.
Superior damping and shock resistance.
